Wound Filter Elements (Polypro or Cotton)

Wound Filter Elements (Polypro or Cotton)

Store / FILTERCHEM / Filtration Systems
$0.00
In stock
Product Details

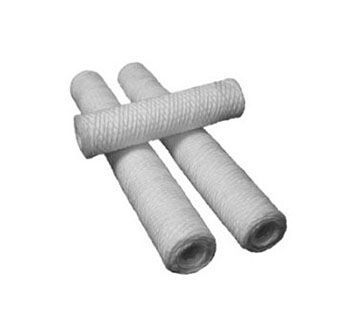

FilterChem� wound filter elements are made of a single strand of yarn which is precision wound around a perforated core in a controlled diamond pattern. This pattern gives progressive depth filtration with high dirt-holding capacity and low media-migration, making our wound filter elements the filter of choice.Quality materials with high fluid compatibility combine with state of the art hi-speed manufacturing equipment to produce uniform flow and consistent quality for a cost effective solution in a wide range of applications. All elements and filter chambers manufactured by Filterchem @ Div Heritage Products

CONSISTENT PERFORMANCE
  • Modern, high speed equipment consistently produce elements to your exact specifications.
  • Uniform winding assures accurate micron retention and flow throughout the length of the element.
  • On time deliveries.� FilterChem�� has a reputation for getting you product when you need it.
EFFICIENT FILTRATION
  • Continuous winding process, which eliminates joints and the potential of fluid bypass.
  • Deep diamond pattern provides high depth filtration to hold dirt with extremely low media migration.
BROAD RANGE OF APPLICATIONS
  • Variety of quality filter media for a wide range of chemical compatibility.
  • Any length from 3" thru 40".
  • Elements (1) micron thru (100) micron
EXPERIENCED APPLICATION SUPPORT
    Customer service technicians are available to assist you in obtaining the best technical and economical solution to your filtration requirements.
MATERIALS OF CONSTRUCTION
Standard Polypropylene: Best all around media for most applications including water, alkaline, most acids and chemicals. Maximum temperature 200�F.
Bleached Cotton: Bleached to meet FDA requirements for potable liquids, vegetable oils, beverages, organic solvents, dilute acids, petroleum oils, etc. Maximum temperature 280�F.
Polypropylene Core: The choice for most applications in water and corrosives. FDA approved material. Maximum temperature 200�F.

Polypro Media 1 �- Polypro Core
Part # Size Micron
190001 10" 1
190005 10" 5
190030 10" 30
190050 10" 50
190100 10" 100
190201 20" 1
190205 20" 5
190230 20" 30
190250 20" 50
190200 20" 100
190301 30" 1
190305 30" 5
190330 30" 30
190350 30" 50
190300 30" 100
190010 10" 10
190210 20" 10
190310 30" 10
1 Standard Polypropylene media
Case Quantities
10" = 30 UNITS PER CASE 20" = 15 UNITS PER CASE 30" = 15 UNITS PER CASE
  Other Micron Sizes and Lengths on Request
Cotton Media 2 �- Polypro Core
Part # Size Micron
190001C 10" 1
190005C 10" 5
190030C 10" 30
190050C 10" 50
190100C 10" 100
190201C 20" 1
190205C 20" 5
190230C 20" 30
190250C 20" 50
190200C 20" 100
190301C 30" 1
190305C 30" 5
190330C 30" 30
190350C 30" 50
190300C 30" 100
190010C 10" 10
190210C 20" 10
190310C 30" 10
2 Bleached Cotton media
Common element sizes and materials are listed for your convenience. However, we will manufacture any filter element to your specification from 3" to 40". Please call for additional specifications.
