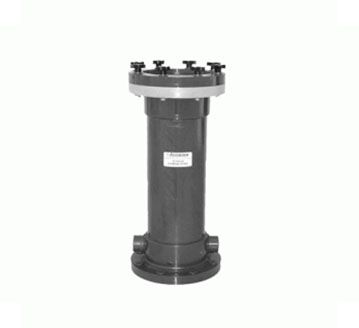

Filter Housing will accept Cotton, Fibrillated and Polypropylene Elements
Bag Filters installed in Multi-Tube Chambers – Same price
Maximum pressure 80 PSI ambient temperature
3-Tube Chambers
Part #
Max Capacity
Material
FC-PV3-10
900 GPH
PVC
FC-PV3-20
1800 GPH
PVC
FC-PV3-30
2700 GPH
PVC
FC-HT3-10
900 GPH
CPVC1
FC-HT3-20
1800 GPH
CPVC1
FC-HT3-30
2700 GPH
CPVC1
1Chlorinated Polyvinyl Chloride Above units have 1″ FPT. 10″ – 11-1/2″ dia. X 16-1/2″ high 20″ – 11-1/2″ dia. X 26-1/2″ high 30″ – 11-1/2″ dia. X 36-1/2″ high
5-Tube Chambers
Part #
Max Capacity
Material
FC-PV5-10
1800 GPH
PVC
FC-PV5-20
2500 GPH
PVC
FC-PV5-30
3600 GPH
PVC
FC-PP5-10
1800 GPH
POLYPRO1
FC-PP5-20
2500 GPH
POLYPRO1
FC-PP5-30
3600 GPH
POLYPRO1
FC-HT5-10
1800 GPH
CPVC2
FC-HT5-20
2500 GPH
CPVC2
FC-HT5-30
3600 GPH
CPVC2
1Polypropylene 2Chlorinated Polyvinyl Chloride Above units have 1½” FPT. 10″ – 14″ dia. X 16-1/2″ high 20″ – 14″ dia. X 26-1/2″ high 30″ – 14″ dia. X 36-1/2″ high
