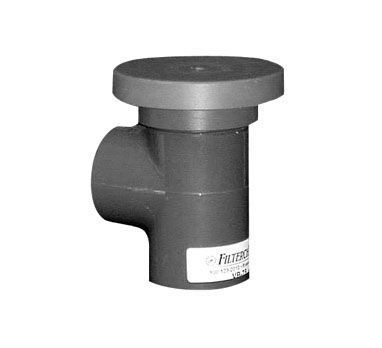

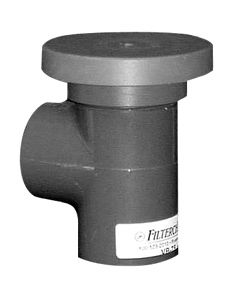

Vacuum Breakers

Vacuum Breakers

Store / FILTERCHEM
$0.00
Part #
Please choose
In stock
Product Details

Prevents Back Siphonage of Chemicals and Toxic Liquids






  • Vacuum breakers are widely used to prevent unwanted back siphonage.
  • When flow stops, the disc automatically seats itself to prevent back siphonage in the vertical line.
    Opening the horizontal line to the atmosphere for drainage.
  • Viton O-Rings standard.
    EPDM - Optional


    Normally Closed Standard
    Part # Size Material
    FC-VB-50 1/2" PVC
    FC-VB-75 3/4" PVC
    FC-VB-10 1" PVC
    FC-VB-15 1-1/2" PVC
    FC-VB-20 2" PVC
    FC-VB-30 3" PVC
    FC-PVB-50 1/2" POLYPRO1
    FC-PVB-75 3/4" POLYPRO1
    FC-PVB-10 1" POLYPRO1
    FC-PVB-15 1-1/2" POLYPRO1
    FC-PVB-20 2" POLYPRO1
    FC-PVB-30 3" POLYPRO1
    1Polypropylene
    Dimensions
    Size A Dia. B Dia. C Dia. D Dia.
    1/2" 2.00 1.63 1.36 1.36
    3/4" 2.50 1.78 1.48 1.48
    1" 2.50 2.17 1.70 1.70
    1-1/2" 3.50 2.84 2.48 2.48
    2" 3.75 3.19 2.75 2.75
    3" 4.75 4.00 3.50 3.50
