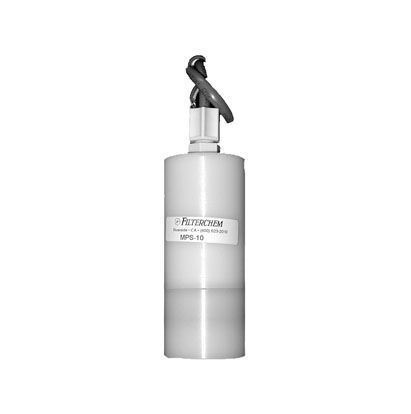

Pressure Switch (adjustable)

Pressure Switch (adjustable)

Store / FILTERCHEM
$0.00
In stock
Product Details
Switch has a multitude of uses, including opening and closing valves, sounding alarms, starting or stopping pumps, avoiding excess pressures on tanks or truck tanks, etc. Switches have UL and CSA listing. Important Features
  • Shuts off when pressure increases or decreases.
  • Pressure Limit 125 PSI
  • Size 1 3/4" diameter x 5" height
  • Adjustable 1 to 100 PSI with reset
  • Normally open or closed switch
  • Viton diaphragm standard
  • 1/4" compression fitting

Adjustable Pressure Switches
Part # Material
FC-MPS-10 HDPE1
FC-KMPS-10 PVDF2
FC-TMPS-10 TEFLON
1High Density Polyethylene 2Polyvinylidene Fluoride
Wiring Diagram - Type A & B
A Switch opens when pressure rises Switch closes when pressure drops
B Switch closes when pressure rises Switch opens when pressure drops
C Black to red opens when pressure rises Black to white closes when pressure rises Black to red closes when pressure drops Black to white opens when pressure drops
