Level and Pump Controlled Protection

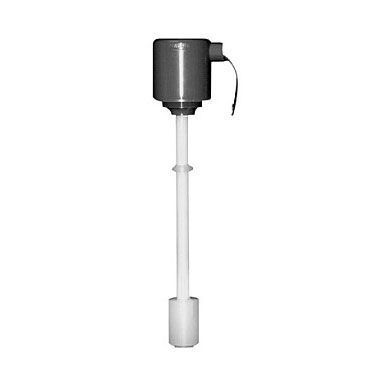

Our compact, easy-mounting Flow-Control level, designed for trouble-free handling of corrosive liquids. The polypropylene tube and float operate without metallic contact or electric current in solution. Flow-Control will maintain high-low liquid levels in your tanks, empty sumps when full, fill tanks automatically!!! Other uses include actuating pumps, triggering solenoid valves, plus turning off heaters if fluid is lost from tanks. High or low level alarms or secondary pump starts are optionally available for any model. Conduit connection is standard. Prevention of running pumps dry is a great cost saving for most companies.
  • HIGH OR LOW LEVEL CONTROL SIGNALS TURN PUMPS, TANKS, HEATERS ON AND OFF.
  • EXTRA CONTROL TO PREVENT FIRES AND OTHER SAFETY HAZARDS.

Level & Pump Controls
Part # Load Material
FC-LLC-120P 115V to 20 Amps. (1 HP. or under) POLYPRO1
FC-LLC-24P 24 VAC (1 HP. or under) POLYPRO1
FC-LLC-120HT 115V to 20 Amps. (1 H.P. or under) CPVC2
FC-LLC-24HT 24 VAC (1 HP. or under) CPVC2
FC-LLC-120K 115V to 20 Amps. (1 H.P. or under) PVDF3
FC-LLC-24K 24 VAC (1 HP. or under) PVDF3
1Polypropylene - temperature limit 180�F 2Chlorinated Polyvinyl Chloride - temperature limit 180�F 3Polyvinylidene Fluoride - temperature limit 300�F

How To Order: Please read the following guidelines and call us toll-free at (866) 839-1866 to place your order, or if you have any questions about ordering.
  1. Units available 6 inches to 20 feet long.
  2. Specify Flow Control Type 1 or Type 2. See diagram A.
  3. Specify voltage: 24 VAC or 120 VAC (Standard). Wire fractional motors direct thru 1 HP single phase (Part No. FC-LLC-10).
  4. Indicate mounting bracket desired. Bracket A, B or C (included in price of standard unit). See diagram B
  5. Give all level control dimensions from top of vessel. Describe function to be performed at each level. If indicator lights or alarms are required, also diagram these positions. For example: P1 stop pump 6"; P2 start pump 24"; P3 ring low level alarm 29". See diagram A.
Diagram A  Notes: - The lowest switch position must be 3" above the bottom of the vessel: if not a well is required. - Switches can be no closer than 2" from each other. Diagram B Mounting Bracket A � Mounting Bracket BMounting Bracket C

Spare Parts
Part # Description
FC-RS Reed Switch
FC-20R 20 Amp Relay
FC-PFA Polypro Float Assembly
FC-CFA CPVC Float Assembly
FC-KFA PVDF Float Assembly
Warranty FilterChem� will replace or repair any controls shown within one year of purchase date when found to be of defective material or workmanship. FilterChem� liability is expressly limited to the product itself. Under no circumstances is FilterChem� liable for incidental or consequential damages. WARRANTY VOID IF SEAL IS BROKEN.   � For ordering, please complete the Level & Pump Control order form, send completed form to Sales@heritagepro.com Level & Pump Control Order Form.pdf
