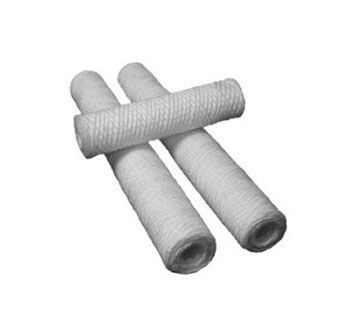

FilterChem� wound filter elements are made of a single strand of yarn which is precision wound around a perforated core in a controlled diamond pattern. This pattern gives progressive depth filtration with high dirt-holding capacity and low media-migration, making our wound filter elements the filter of choice.Quality materials with high fluid compatibility combine with state of the art hi-speed manufacturing equipment to produce uniform flow and consistent quality for a cost effective solution in a wide range of applications. All elements and filter chambers manufactured by Filterchem @ Div Heritage Products
CONSISTENT PERFORMANCE
Modern, high speed equipment consistently produce elements to your exact specifications.
Uniform winding assures accurate micron retention and flow throughout the length of the element.
On time deliveries.� FilterChem��
has a reputation for getting you product when you need it.
EFFICIENT FILTRATION
Continuous winding process, which eliminates joints and the potential of fluid bypass.
Deep diamond pattern provides high depth filtration to hold dirt with extremely low media migration.
BROAD RANGE OF APPLICATIONS
Variety of quality filter media for a wide range of chemical compatibility.
Any length from 3" thru 40".
Elements (1) micron thru (100) micron
EXPERIENCED APPLICATION SUPPORT
Customer service technicians are available to assist you in obtaining the best technical and economical solution to your filtration requirements.
MATERIALS OF CONSTRUCTION
Standard Polypropylene:
Best all around media for most applications including water, alkaline, most acids and chemicals. Maximum temperature 200�F.
Bleached Cotton:
Bleached to meet FDA requirements for potable liquids, vegetable oils, beverages, organic solvents, dilute acids, petroleum oils, etc. Maximum temperature 280�F.
Polypropylene Core:
The choice for most applications in water and corrosives. FDA approved material. Maximum temperature 200�F.
Polypro Media 1
�- Polypro Core
Part #
Size
Micron
190001
10"
1
190005
10"
5
190030
10"
30
190050
10"
50
190100
10"
100
190201
20"
1
190205
20"
5
190230
20"
30
190250
20"
50
190200
20"
100
190301
30"
1
190305
30"
5
190330
30"
30
190350
30"
50
190300
30"
100
190010
10"
10
190210
20"
10
190310
30"
10
1
Standard Polypropylene media
Case Quantities
10" = 30 UNITS PER CASE 20" = 15 UNITS PER CASE 30" = 15 UNITS PER CASE
Other Micron Sizes and Lengths on Request
Cotton Media 2
�- Polypro Core
Part #
Size
Micron
190001C
10"
1
190005C
10"
5
190030C
10"
30
190050C
10"
50
190100C
10"
100
190201C
20"
1
190205C
20"
5
190230C
20"
30
190250C
20"
50
190200C
20"
100
190301C
30"
1
190305C
30"
5
190330C
30"
30
190350C
30"
50
190300C
30"
100
190010C
10"
10
190210C
20"
10
190310C
30"
10
2
Bleached Cotton media
Common element sizes and materials are listed for your convenience. However, we will manufacture any filter element to your specification from 3" to 40". Please call for additional specifications.
