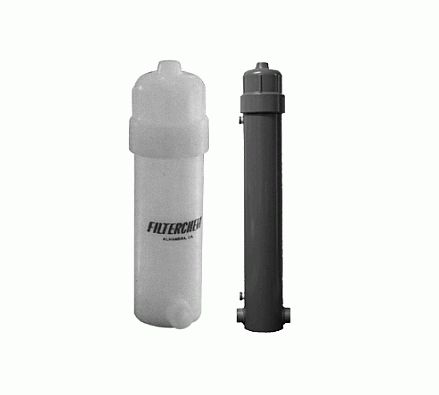

Plastic Filter Chambers (Single Tube)

Plastic Filter Chambers (Single Tube)

Store / FILTERCHEM
$0.00
In stock
Product Details
PVC - POLYPRO - CPVC - PVDF Housings

Features:
  • Viton O-ring standard
  • Clear PVC Tubes: POA
  • All caps are molded
  • Drain/gauge standard
Information:
  • 10" �- 3�" dia. X 13�" high w/ 1/2" FPT ports
  • 20" �- 3�" dia. X 23�" high w/ 3/4" FPT ports
  • 30" �- 3�" dia. X 33�" high w/ 3/4" FPT ports
  • Inlet pressure not to exceed 80 PSI at ambient temp.

Single-Tube Filter Chambers
Part # Size Material
FC-PV1-10 10" PVC
FC-PV1-20 20" PVC
FC-PV1-30 30" PVC
FC-PI-10 10" POLYPRO1
FC-PI-20 20" POLYPRO1
FC-PI-30 30" POLYPRO1
FC-HT1-10 10" CPVC2
FC-HT1-20 20" CPVC2
FC-HT1-30 30" CPVC2
FC-KI-10 10" PVDF3
FC-KI-20 20" PVDF3
FC-KI-30 30" PVDF3
1Polypropylene 2Chlorinated Polyvinyl Chloride 3Polyvinylidene Fluoride
