Sub-Micron (double o-ring elements)

Sub-Micron (double o-ring elements)

Store / FILTERCHEM
$0.00
In stock
Product Details
POLYPROPYLENE - PVDF Maximum 0.2 Micron Filtration

Important Features
  • Gasketed elements or internal O-Ring type elements require plug-in adaptor, part number FC-SUB-GA. Adaptor will fit all models.
  • Max inlet pressure 80 PSI at ambient temp.
  • No tools needed for filter change.
Special size or style manifolded groups of chambers can be assembled to your individual requirements.

FilterChem� chamber design allows use of many element types for sub-micron or standard filtration. All housing accepts all 1" internal O-ring cartridges (Pall, Millipore, Filterite), all flat gasketed cartridges. Most 1-3/4" external O-ring cartridges and mostly molded or spun wound cartridges.

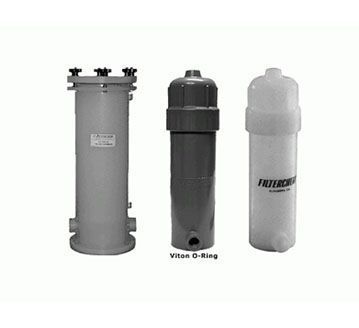

Single-Tube Sub-Micron Chambers
Part # Material
FC-P-MICRO-10 POLYPRO1
FC-P-MICRO-20 POLYPRO1
FC-P-MICRO-30 POLYPRO1
FC-K-MICRO-10 PVDF2
FC-K-MICRO-20 PVDF2
FC-K-MICRO-30 PVDF2
1Polypropylene 1Polyvinylidene FluorideDimensions: 10" - 3-1/2" x 13-1/2" high w/ 1/2" FPT ports 20" - 3-1/2" x 23-1/2" high w/ 3/4" FPT ports 30" - 3-1/2" x 33-1/2" high w/ 3/4" FPT ports
Large Capacity 5-tube Sub-Micron Chambers
Part # Material
FC-P5MICRO-10 POLYPRO1
FC-P5MICRO-20 POLYPRO1
FC-P5MICRO-30 POLYPRO1
1PolypropyleneDimensions: 10" - 11-1/2" x 17-1/2" high w/ 1" FPT ports 20" - 11-1/2" x 26-1/2" high w/ 1" FPT ports 30" - 11-1/2" x 36-1/2" high w/ 1" FPT ports
