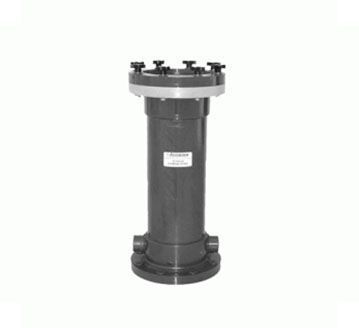

Multi-Tube Chambers - Large Capacity

Multi-Tube Chambers - Large Capacity

Store / FILTERCHEM
$0.00
In stock
Product Details
PVC - CPVC - POLYPRO

Features:
  • No Tools Needed For Filter Change
  • Viton O-rings standard
  • Standard elements or bag filters
Information:
  • Filter Housing will accept Cotton, Fibrillated and Polypropylene Elements
  • Bag Filters installed in Multi-Tube Chambers - Same price
  • Maximum pressure 80 PSI ambient temperature
3-Tube Chambers
Part # Max Capacity Material
FC-PV3-10 900 GPH PVC
FC-PV3-20 1800 GPH PVC
FC-PV3-30 2700 GPH PVC
FC-HT3-10 900 GPH CPVC1
FC-HT3-20 1800 GPH CPVC1
FC-HT3-30 2700 GPH CPVC1
1Chlorinated Polyvinyl Chloride Above units have 1" FPT. 10" - 11-1/2" dia. X 16-1/2" high 20" - 11-1/2" dia. X 26-1/2" high 30" - 11-1/2" dia. X 36-1/2" high
5-Tube Chambers
Part # Max Capacity Material
FC-PV5-10 1800 GPH PVC
FC-PV5-20 2500 GPH PVC
FC-PV5-30 3600 GPH PVC
FC-PP5-10 1800 GPH POLYPRO1
FC-PP5-20 2500 GPH POLYPRO1
FC-PP5-30 3600 GPH POLYPRO1
FC-HT5-10 1800 GPH CPVC2
FC-HT5-20 2500 GPH CPVC2
FC-HT5-30 3600 GPH CPVC2
1Polypropylene 2Chlorinated Polyvinyl Chloride Above units have 1�" FPT. 10" - 14" dia. X 16-1/2" high 20" - 14" dia. X 26-1/2" high 30" - 14" dia. X 36-1/2" high
Show More
