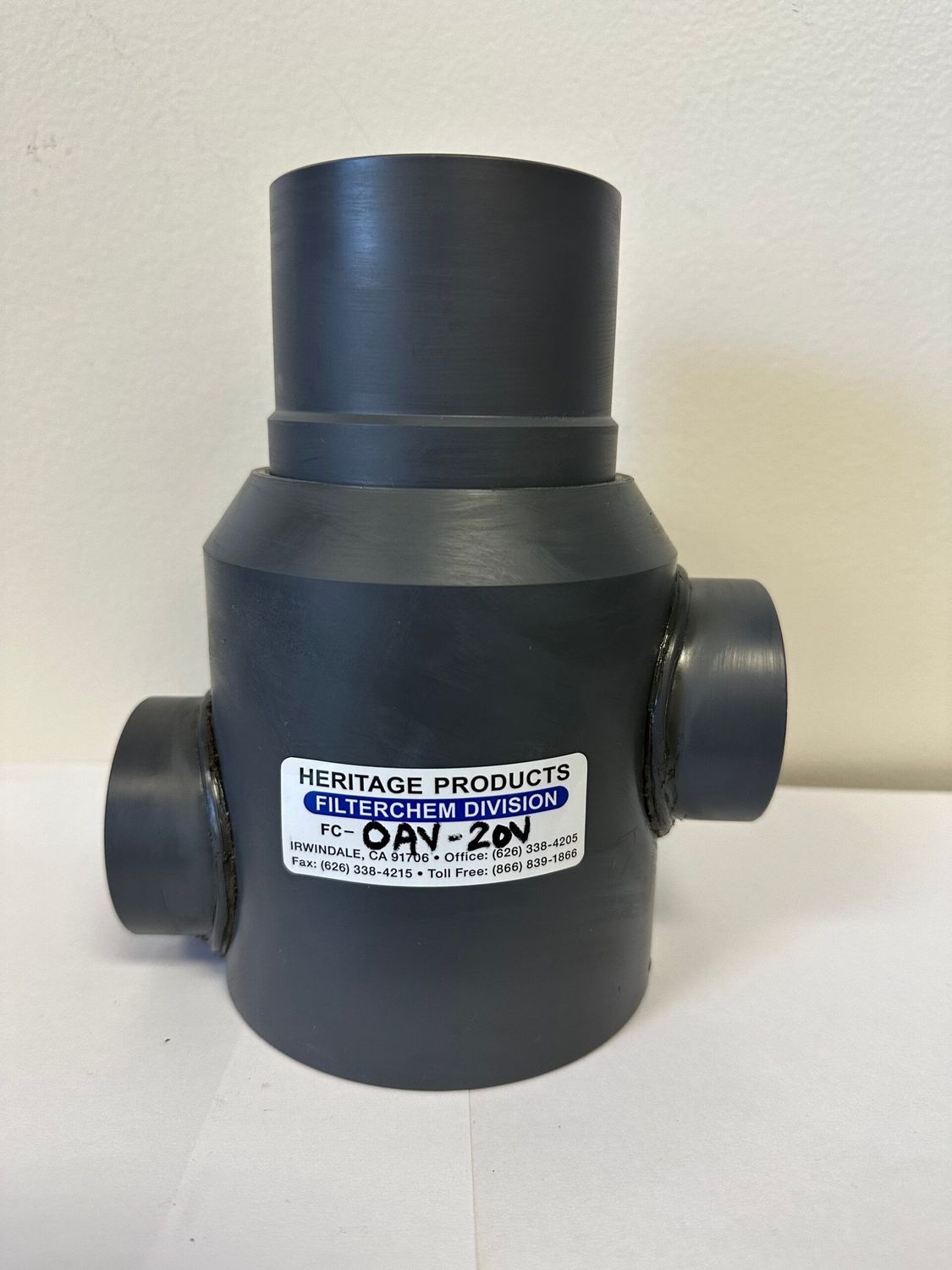

One Way Air-Operated Valve
+6
+5
+4
+3
+2

One Way Air-Operated Valve

Store / FILTERCHEM
$0.00
Size
Please choose
Part #
Please choose
In stock
Product Details
Normally Closed Standard
Part # Size Material

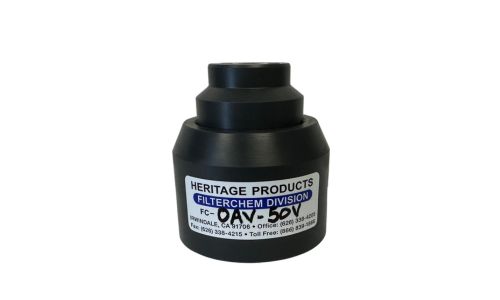

FC-OAV-50 1/2″ PVC
FC-OAV-75 3/4″ PVC
FC-OAV-10 1″ PVC
FC-OAV-15 1-1/2″ PVC
FC-OAV-20 2″ PVC
FC-POAV-50 1/2″ POLYPRO1
FC-POAV-75 3/4″ POLYPRO1
FC-POAV-10 1″ POLYPRO1
FC-POAV-15 1-1/2″ POLYPRO1
FC-POAV-20 2″ POLYPRO1
FC-KOAV-50 1/2″ PVDF2
FC-KOAV-75 3/4″ PVDF2
FC-KOAV-10 1″ PVDF2
1Polypropylene
2Polyvinylidene Fluoride
Dimensions
Size A Dim. B Dim. C Dim. D Dim.
1/2″ 0.875 3.00 0.875 3.25
3/4″ 0.95 3.95 0.95 4.95
1″ 0.95 3.95 0.95 4.95
1-1/2″ 2.9 4.50 1.375 7.5
2″ 3.5 4.70 1.645 9.0


Technical Drawing

Show More
Share this product with your friends
Pin it
One Way Air-Operated Valve
Store / FILTERCHEM
You May Also Like

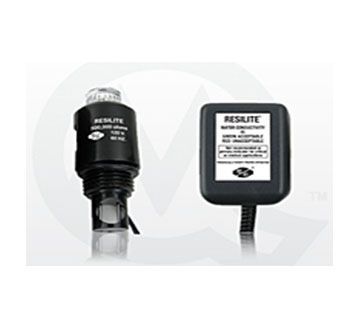

Aqua-Lite
Aqua-Lite
Aqua-Lite
$0.00

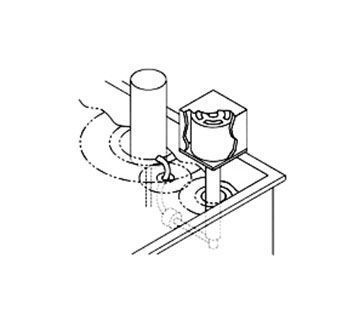

Acid Waste Collection
